Ascom SE-Series
The Ascom SE series consists of the following radios

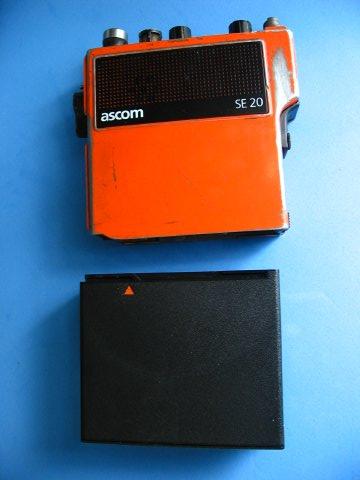

SE20
Frequency range: 68-87.5 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.2 VDC
Channels: 3 channels, XTAL or 200 channels with PLL

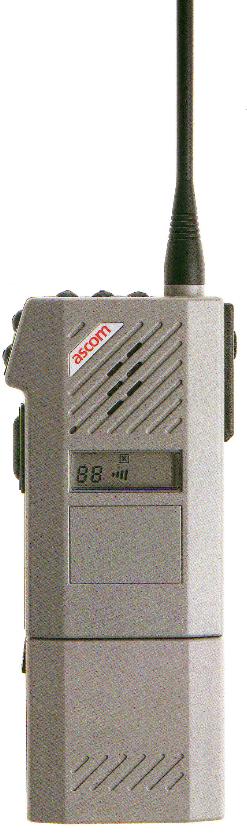

SE110
Type:Handheld radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.5 VDC
Channels: 6 channels synthesised
Also known as Philips LP20
Can be converted to 70Mhz/145mhz and 430mhz ham bands easily simply by reprogramming.
Programming interface
Battery: 7.2 VDC
Channels: 3 channels, XTAL or 200 channels with PLL
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.5 VDC
Channels: 6 channels synthesised

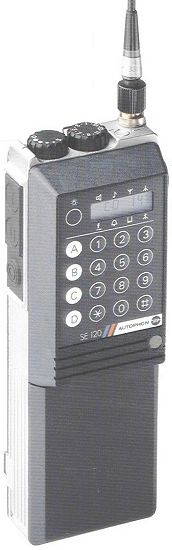

SE120
Type: Handheld radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 1, 2.5 or 5 W
Battery: 7.6 VDC
Channels: Dependant on variant up to 1000 synthesised EPROM
Rebadged Autophon SE120

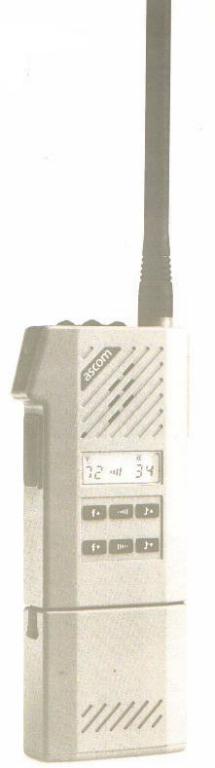

SE140
Type: Handheld radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.5 VDC
Channels: 100 channels synthesised PC software
Also known as Philips LP20 and BOSCH - HFG68 - HFG168 - HFG458
Can be converted to 70Mhz/145mhz and 430mhz ham bands easily simply by reprogramming.
Programming interface
uhf service document

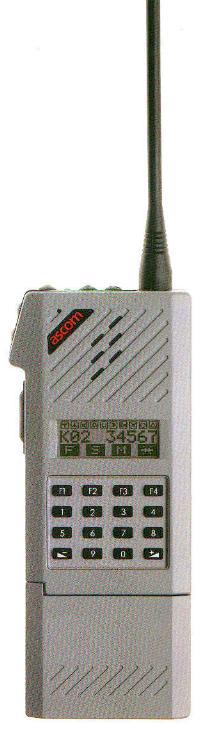

SE160
Type: Handheld radio
Frequency range: 68 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.5 VDC
Channels: 100 channels synthesised PC software
This is the high tier radio of the 110/140/160 series. It has multiple signalling and trunking capabilities. Conversion of trunked model to standard PMR is reputed to be harder than the 110/140.

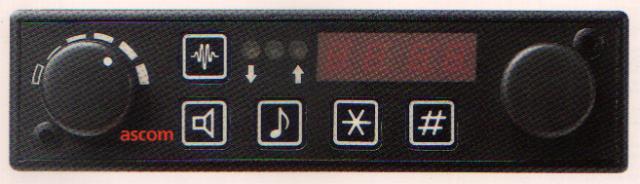

SE155
Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 10W
Battery: 12VDC
Channels: 16 channels synthesised BPROM(82s23/82s123)
Convertible to 70/144/430 by programming bprom.
Also known as Autophon/Radiovox SE155 and Pfitzner/Teletron T8000 in versions
T8800 for VHF low low ( 34 MHz), T8400 VHF low ( 70 MHz )
T8200 VHF high ( 145 MHz ) and T8700 UHF ( 435 MHZ )
Information on Programming

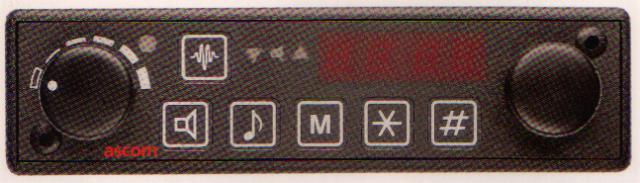

SE157
Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 10W
Battery: 12VDC
Channels: 40 channels synthesised EPROM
Convertible to 70/144/430 by reprogramming eprom.
Known as a Condor 16 VHF high, The Condor 46 is the UHF
version and the Condor 8 VHF low version of SE157.
Also as Teletron TMC82 ( 145 MHz ), TMC84 ( 70 MHz ) and TMC87 (435 MHz )
Known as Radiovox/Autophon SE157 ( UK and Swiss )
Information on Programming
Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 10W
Battery: 12VDC
Channels: 99 channels synthesised EPROM
Convertible to 70/144/430 by reprogramming eprom.
Was used in the UK by the Metropolitan Police
Also known as a Condor16 or 64
Information on Programming

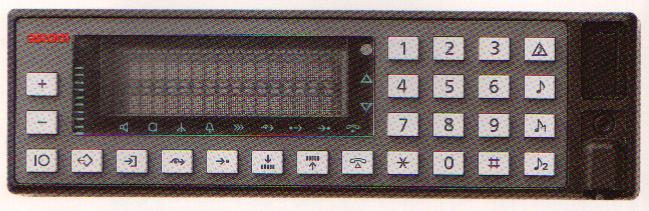

SE550
Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 25W
Battery: 12VDC
Channels: Synthesised PC software
Also known as a Condor 3000
Easily converted to 68-88Mhz free tuning by changing the personality EPROM thanks to PA4DEN.
Also Andy G0BEQ has a site with excellent documentation on this radio
Ascom SE-Series
Radio Model Number
SE-XXX-XXX-X-XXXXX-X..
Example SE-160-082-2
| > | Typ | Freq. Band | TX Power | Channel Spacing | Model Variation | Option |
| > SE | 160 | 08 | 2 | 2 | S | |
| > | ^ | ^ | ^ | ^ | ^ | |
| > | 110=SE110 | 04=33..45MHz | 0=driver only | 1=12.5kHz | S = Standard | |
| > | 140=SE140 | 05=45..58 MHz | 1= 1.0 W | 2=20/25kHz | E = SBB with Keyboard | |
| > | 160=SE160 | 08=68..88 MHz | 2= 2.5 W | 3= 25.0 kHz | C = Crypto | |
| > | 540=SE540 | 14=132..148 MHz | 5= 5.0 W | 5 = 50.0 kHz | D = Digital | |
| > | 550=SE550 | 16=146..174 MHZ | 6= 6.0 W | T = Trunking | ||
| > | 660=SE660 | 20=173..224 MHz | 7= 10.0 W | X = EEX | ||
| > | 21=205..207 MHz | 8= 15.0 W | CT = Crypto-Trunking | |||
| > | 33=300..344 MHz | 9= 25.0 W | DT = Digital-Trunking | |||
| > | 42=400..425 MHz | 10=10 W | EC = SBB with Keyboard + Crypto | |||
| > | 43=400..440 MHz | 20=20W | ET = SBB with Keyboard + Trunking | |||
| > | 45=425..450 MHz | 25=25W | TX = Trunking + EEx | |||
| > | 46=430..470 MHz | Teco = Trunking + low grade | ||||
| > | 47=450..470 MHz | Seco = standard + low grade (SE660) | ||||
| > | 92=892..980 MHz | TXeco = Trunking + Ex + low grade |
This table comes from http://www.oppermann-telekom.de/se160-modelle.html
